Docking Station (TS-DPD6N)

Designed exclusively for Transcend's DrivePro Body 30 and DrivePro Body 60 body cameras, Transcend's TS-DPD6N docking station offers a complete camera management, charging, and data upload solution. The six-port docking station is network-based, providing two Ethernet ports for scalability and fast deployment. A LAN port is used for administrative setup, whereas a WAN port is for data upload to a designated folder while charging. A USB 3.1 Gen 1 port is also included for storing video recordings and snapshots to external storage devices.

Installation Guide

  1. Connect the docking station to an electrical outlet, and switch on.
  2. Connect the docking station to a PC via the LAN port, and to an AP router or an active Internet port via the WAN port.
  3. Change the IP address to 10.10.0.100.

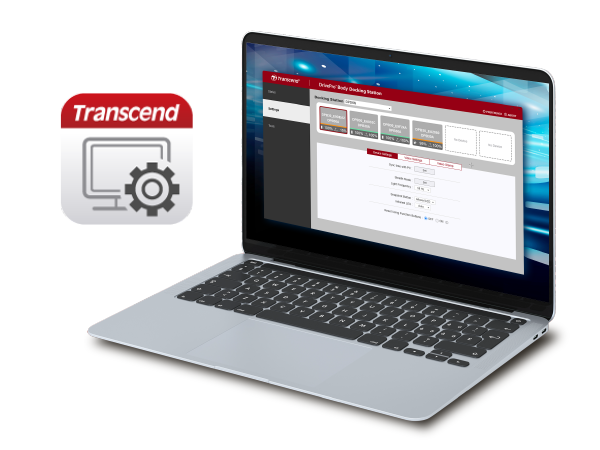

  4. Open a web browser, and link to 10.10.0.1 webpage to open settings.
  5. Complete setup for data uploading while charging.

Specifications

Appearance
Dimensions423 mm x 105 mm x 54 mm (16.65" x 4.13" x 2.13")
Weight980 g (34.57 oz)

Interface
USB Type
  • USB Type-A
Connection Interface
  • USB 3.1 Gen 1

Hardware
Network Port
  • WAN: 10/100/1000 Mbps Ethernet
  • LAN: 10/100 Mbps Ethernet

Operating Environment
Operating Temperature0°C (32°F) ~ 40°C (104°F)
Storage Temperature-20°C (-4°F) ~ 70°C (158°F)

Power
Power Supply (Max.)
  • 19V / 3.42A

Warranty
Certificate
  • CE
  • FCC
  • BSMI
  • KC
  • C-Tick
Warranty
  • Two-year Limited Warranty
Warranty Policy
  • Please click here for more information about the Transcend Warranty Policy.

System Requirement
Operating System
  • Microsoft Windows 7
  • Microsoft Windows 8
  • Microsoft Windows 10

Order Information

  • TS-DPD6N For DrivePro Body 30 and DrivePro Body 60
